For decades, attics groaned under the weight of bulky fiber rolls, the go-to solution for thermal resistance. Yet increasingly, a quieter revolution has taken hold-one where rigid foam panels outperform traditional materials not by bulk, but by precision. Expanded polystyrene (EPS) insulation doesn’t just trap air; it locks it in a closed-cell matrix that resists heat transfer with remarkable efficiency. Unlike fiber, which degrades when compressed or damp, EPS maintains its integrity over time. And while fiber relies on volume, EPS delivers high performance in slimmer profiles-ideal for space-constrained renovations. This shift isn’t just about modern materials; it’s about smarter building science.
Comparing Thermal Efficiency and Cost-Effectiveness
Density and R-Value Variations
Thermal performance in EPS isn’t one-size-fits-all-it scales directly with density and formulation. Standard white EPS typically achieves a thermal conductivity of around 0.035 W/mK, translating to an R-value of approximately 3.5 per inch. This makes it a reliable baseline for walls and roofs in moderate climates. But for higher performance, graphite-enhanced EPS-often recognizable by its charcoal-gray hue-lowers conductivity to about 0.030 W/mK. The improvement comes from microscopic graphite particles that reflect radiant heat, boosting thermal resistance by roughly 15-20%. For those aiming to master their building's thermal envelope, a deep dive into the properties of EPS Insulation is essential for long-term savings.
Long-Term Energy Savings Analysis
Because EPS maintains stable R-values over time-unlike some materials that degrade or settle-it contributes to consistent energy performance. When installed correctly in walls, floors, or under slabs, buildings insulated with EPS can see annual heating and cooling costs reduced by up to 30%. This isn’t just theoretical: in real-world applications, the continuous insulation layer minimizes thermal bridging and air leakage, two major culprits in energy waste. While the initial purchase price of EPS is generally lower than mineral wool or extruded polystyrene (XPS), its true value emerges over time. With minimal maintenance and no degradation in performance, the lifecycle return on investment is strong-especially in climates with extreme temperature swings.
| >Type of EPS | Thermal Conductivity (W/mK) | Typical R-Value per Inch | Compression Resistance (kPa) |
|---|---|---|---|
| Standard White | ~0.035 | 3.2-3.6 | 100-150 |
| Graphite-Enhanced | ~0.030 | 3.8-4.2 | 150-200 |
| High-Density | ~0.033-0.038 | 3.0-3.6 | 200-300+ |
The data shows a clear trade-off: higher density improves structural performance but may slightly reduce thermal efficiency due to increased solid content. However, graphite-enhanced panels manage to improve both insulation and compressive strength, making them a balanced choice for many applications.
Technical Resilience Against Moisture and Compression
Structural Integrity for Specialized Applications
One of EPS’s most underrated qualities is its mechanical resilience. While often seen as just an insulator, high-density EPS can function as a structural material. With compression resistance ranging from 100 kPa in standard boards to over 300 kPa in engineered variants, it supports substantial loads without permanent deformation. This makes it ideal for green roofs, where soil, vegetation, and water can exert significant pressure. In such installations, EPS prevents settling and maintains drainage pathways over decades.
It’s also a go-to choice for radiant heated slabs. When embedded beneath concrete, EPS prevents downward heat loss-directing warmth upward where it’s needed. Because it’s inert and dimensionally stable, it won’t shift or degrade under thermal cycling. Similarly, in below-grade applications like foundation walls or under-slab insulation, EPS’s closed-cell structure resists water absorption-typically absorbing less than 2% moisture by volume even after prolonged exposure. This is critical: wet insulation loses R-value, but EPS remains effective even in damp conditions. And unlike XPS, which can have higher global warming potential in its blowing agents, modern EPS is manufactured with pentane or air, making it more environmentally sound.
Practical Installation and Sustainable Benefits
Simplified On-Site Customization
From a builder’s perspective, EPS is remarkably user-friendly. Boards are lightweight-often weighing less than 1.5 lbs per cubic foot-making them easy to handle without heavy machinery. They come in standard sizes but can be cut on-site with a fine-tooth saw or a hot wire tool, allowing for precise fitting around pipes, corners, and irregular cavities. This adaptability reduces waste and speeds up installation, especially in retrofit projects where space is tight.
- ✅ 100% recyclable at end-of-life, with some manufacturers incorporating post-consumer content
- ✅ No VOC off-gassing-safe for indoor air quality
- ✅ Lightweight and easy to install, ideal for DIY and professional crews alike
- ✅ Compatible with EIFS, cavity walls, and exterior insulation systems
- ✅ Chemically stable-resists mold, rot, and insect infestation

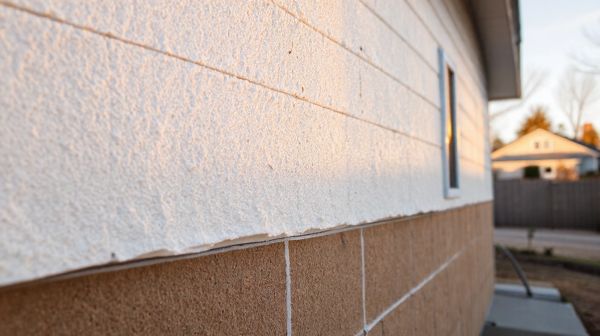

Its compatibility with Exterior Insulation and Finish Systems (EIFS) is another plus. Because it adheres well to substrates and accepts base coats and finishes reliably, it contributes to durable, weather-resistant façades. In retrofit scenarios-such as insulating masonry walls from the inside-thin, high-performance EPS boards allow for significant thermal improvement without sacrificing room size. And because it doesn’t require special protective gear during handling (unlike some fiber-based materials), it lowers labor barriers and speeds up project timelines.
Common Questions About Rigid Foam Solutions
Can I use EPS for a green roof project without it collapsing under the soil weight?
Yes, but only if you use high-density EPS rated for structural loads. Panels with a compression resistance of 300 kPa or higher are specifically engineered to support the weight of soil, plants, and water without compressing over time. These are commonly used in green roof assemblies and are designed to last the lifetime of the building.
How does graphite-enhanced polystyrene differ from the standard white panels technically?
Graphite-enhanced EPS contains microscopic particles that reflect radiant heat back into the building envelope. This reduces heat transfer and lowers thermal conductivity to around 0.030 W/mK-about 15-20% better than standard white EPS. The result is higher R-value per inch and improved energy efficiency without increasing thickness.
Is EPS more effective than XPS for below-grade foundation insulation?
In most cases, EPS performs comparably or better over time. While XPS starts with a slightly higher initial R-value, it can lose performance due to thermal drift. EPS maintains stable insulation values and has superior moisture drying capacity. It’s also more cost-effective and environmentally friendly, making it a preferred choice for foundation walls and under-slab applications.
Does EPS insulation require a vapor barrier in cold climates?
Not necessarily. Because EPS has a low moisture absorption rate and allows some drying to occur, it often performs well without an added vapor barrier. However, local building codes and climate conditions should guide this decision. In extremely cold regions, a smart vapor retarder may be recommended to manage interior humidity.
Can EPS be used in cavity wall insulation for older homes?
Yes, but with caution. Pre-cut rigid boards can be inserted into open cavities during renovations, but care must be taken to avoid gaps and thermal bridging. For blown-in applications, EPS beads are sometimes used, though professional installation is advised to ensure even distribution and long-term performance.
